1. Product Overview

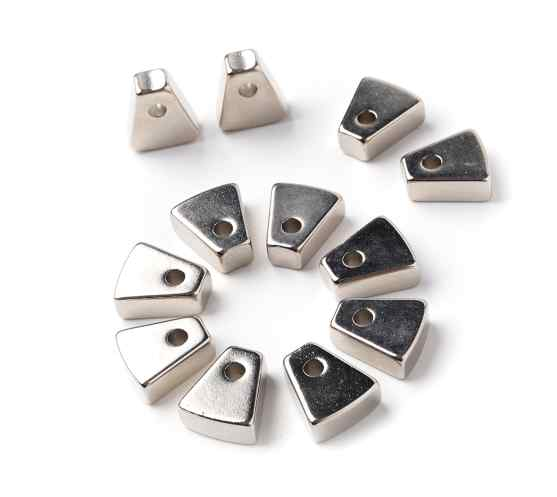

NdFeB special-shaped magnets redefine high-performance magnetic applications through unique geometric flexibility and precise magnetic circuit design, supporting fully customized forms. Their multi-pole magnetization and complex structural engineering enable accurate magnetic field control, making them indispensable in cutting-edge fields like medical microsystems and robotic joints.

2. Technical Parameters

- Product Name: NdFeB Special-Shaped Magnets

- Magnet Grade: N40 (Br ≥13.5 kGs, Hcj ≥10.8 kOe)

- Dimensions: Y13mm *54mm*10mm (Customizable)

- Dimensional Tolerances: L±0.05mm, W±0.05mm, T±0.05mm

- Operating Temperature: ≤80°C (High-temp versions available)

- Density≥7.5 g/cm³

- Surface Magnetic Field: 3,800 Gs ±200 Gs (TM-801 Gauss Meter)

- Flux Value: 2.0 mWb (Fluxmeter-tested)

3. Manufacturing Process

The product is manufactured through the following key processes:

Wire Cutting: Uses molybdenum/copper wire cutting equipment to achieve ±0.02mm precision for small-batch custom rings.

Centerless Grinding: Refines inner and outer diameters to ensure roundness (±0.05mm tolerance).

Double-Disc Grinding: Controls thickness and parallelism.

4. Surface Treatment & Plating

To enhance corrosion resistance and appearance quality, the following surface treatment solutions are adopted:

Default Coating: Triple-layer nickel-copper-nickel (Ni-Cu-Ni). Coating can be customized according to customer requirements.

Coating Thickness Standard: Ni (3μm) + Cu (5μm) + Ni (4μm). Coating thickness can be customized as needed.

Optional Coating: Single-layer zinc (Zn 5μm) for cost-sensitive projects.

5. Appearance & Dimensional Inspection

Quality control protocol:

- Manual inspection (micrometer/caliper)

- Visual inspection (800-1,200 lux, 20-750px distance)

- 2D optical measurement (irregular geometries)

6. Reliability Testing

Environmental Adaptability Testing

Temperature Resistance Test: Magnets are subjected to extreme temperature conditions, typically through thermal cycling between -40°C and +80°C, to assess changes in magnetic and physical properties.

Humidity Exposure Test: Magnets are placed in environments with high relative humidity (≥ 90%) for a specified duration to evaluate any signs of rust, corrosion, or degradation in magnetic performance.

Salt Spray Test: To simulate harsh conditions such as coastal environments, magnets are exposed to salt spray atmospheres to examine their corrosion resistance and long-term durability.

7. Packaging Process

Magnetic-safe packaging:

 Reject defective items

 Magnetize & align conforming products

 Custom quantitation/labeling per box

 Vacuum sealing + magnetic shields/buffer pads

 Moisture/collision/interference-proof master carton

8. Application Fields

- Automotive: Sensors (crankshaft/camshaft), solenoids, motors

- Consumer Electronics: Acoustic devices, wearables

- Medical: MRI systems, minimally invasive surgical robots

- Aerospace & Defense: Satellite attitude control, drone motors

9. Usage Precautions

- Handling: Avoid drops/impacts (brittle material)

- Safety: Use sliding motion (pinch hazard prevention)

- Installation: Verify polarity via size markings

- Storage: Dry environment; avoid heat/acids/alkalis

- Isolation: >750px from pacemakers/HDDs/IC cards

10. Customization & Services

- Dimensions/shapes/coatings (layers, thickness, color)

- Polarity/magnetic strength customization

- Laser marking (logos/serial numbers)

- Application-specific encapsulation & pull-force testing
