Nickel plated disc

1. Product Overview

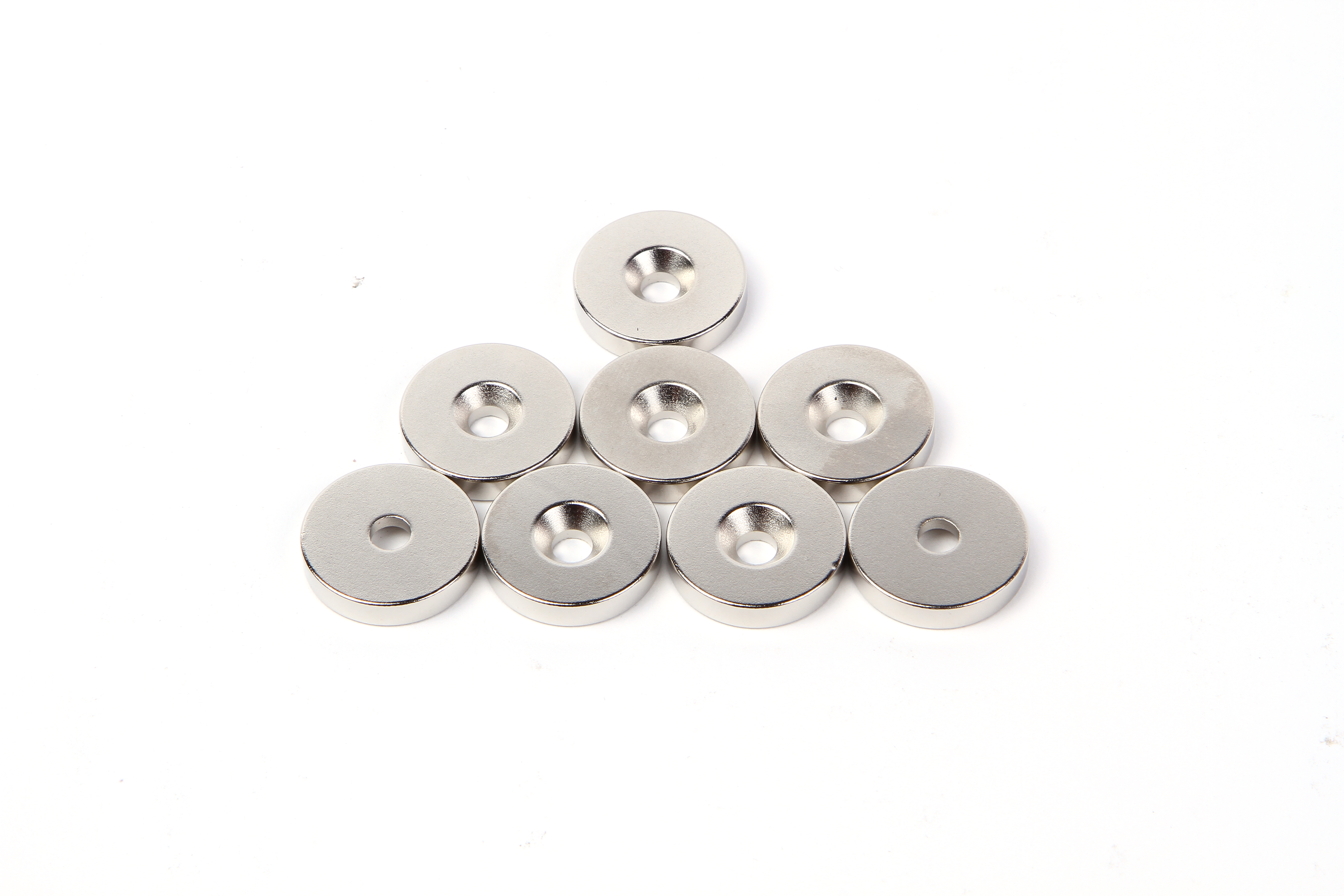

Perforated ring magnets deliver exceptional conductivity, solder ability, and magnetic shielding, making them ideal core components for high-end electromechanical devices. They maintain robust magnetic performance in complex environments. The structural compatibility of nickel-plated disc magnets enables versatile customization across diverse applications.

2. Technical Parameters

- Product Name: Nickle-plated Perforated Ring Magnet

- Magnet Grade: N52 (Br ≥14.8 kGs, Hcj ≥10.5 kOe)

- Dimensions: L10mm × W5mm × T1.5mm

- Dimensional Tolerances: L±0.05mm, W±0.05mm, T±0.05mm

- Operating Temperature: ≤80°C (High-temp versions available)

- Density: ≥7.5 g/cm³

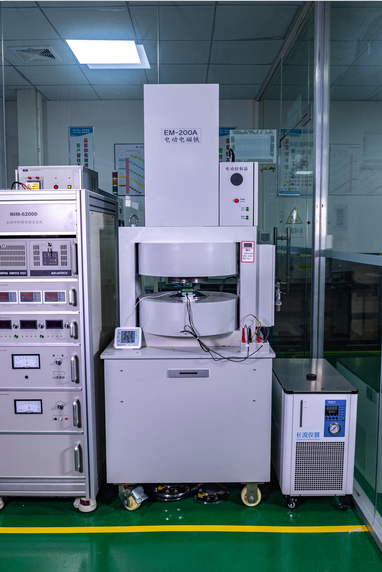

- Surface Magnetic Field: 1,600 Gs (TM-801 Gauss Meter)

- Flux Value: 1.10 mWb (Fluxmeter-tested)

3. Manufacturing Process

Key production stages:

- Pulse Magnetization:

  Field strength/pulse width/cycles optimized per application.

- Degreasing & Cleaning:

  Ultrasonic/alkaline cleaning → Enhanced surface purity.

4. Surface Treatment & Plating

- Electroless Nickel Plating:

  Autocatalytic Ni-P alloy → Uniformity/low porosity/corrosion resistance.

- Electrophoretic Coating:

  Electrically deposited polymer → Corrosion protection + aesthetic finish.

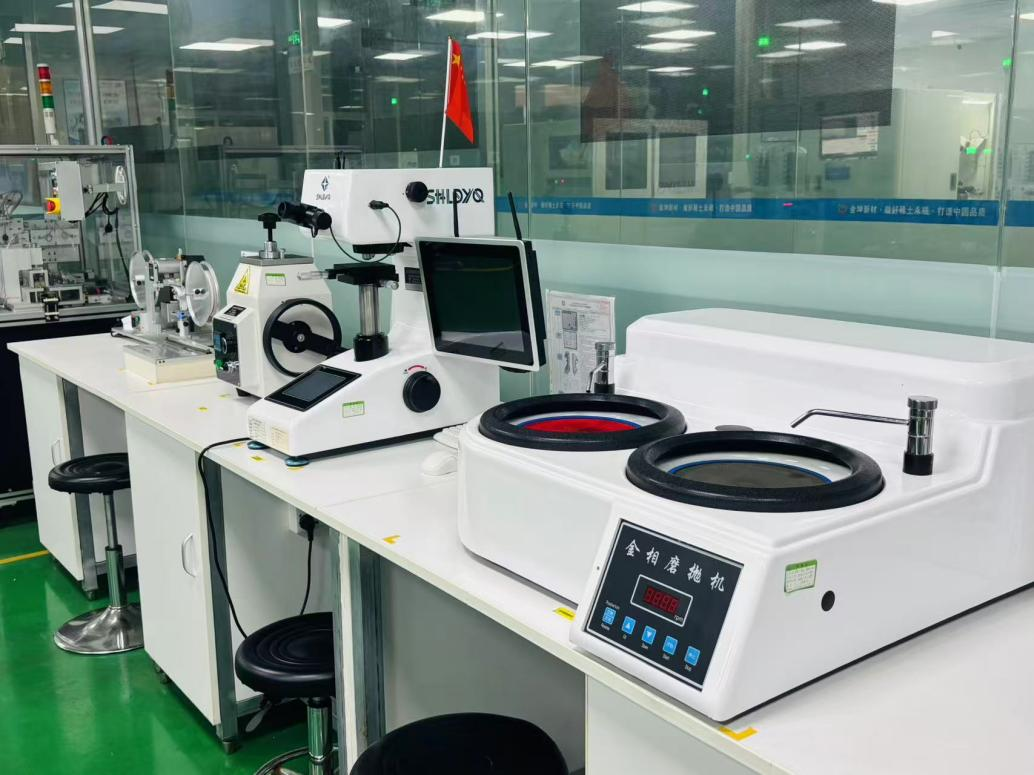

5. Appearance & Dimensional Inspection

- Manual inspection (micrometer/caliper)

- Visual inspection (800-1,200 lux, 20-750px distance)

- 2D optical measurement (irregular geometries)

6. Reliability Testing

·  Impact Resistance Test: Simulates shock conditions during transportation or use using an impact testing machine, to assess whether the magnet develops cracks, fractures, or other structural failures under sudden external force.

·  Vibration Resistance Test: Magnets are fixed on a vibration table and subjected to varying frequencies and amplitudes to evaluate structural stability and performance reliability under dynamic conditions.

·  Drop Test: Magnets are dropped from a specified height onto a hard surface to simulate accidental drops during handling or assembly, helping to assess their impact tolerance and durability.

· Bending/Flexural Test: Bending force or repeated flexing is applied to the magnet to evaluate its mechanical integrity and fatigue resistance under stress, especially for thin or irregular-shaped magnets.

7. Packaging Process

Magnetic-safe protocol:

1. Reject defective items

2. Magnetize & align conforming products

3. Custom quantitation/labeling per box

4. Vacuum sealing + magnetic shields/buffer pads

5. Moisture/collision/interference-proof master carton

(Custom packaging available)

8. Application Fields

- Electronics: Battery connectors, electrical contacts/switches

- Automotive: Sensor components, motor brushes/commutators

- Industrial: Shims/washers, instrumentation parts

- Medical: Surgical instrument components

- Renewable Energy: Solar panel connectors, energy storage systems

9. Usage Precautions

- Handling: Avoid drops/impacts (brittle material)

- Safety: Use sliding motion (pinch hazard prevention)

- Installation**: Verify polarity via size markings

- Storage: Dry environment; avoid heat/acids/alkalis

- Isolation>750px from pacemakers/HDDs/IC cards

10. Customization & Services

·  Supports multi-dimensional customization, including size, shape, and coating (layers, thickness, and color)

·  Customizable magnetic pole orientation and magnetic strength according to application requirements

·  Laser engraving available for logos or serial number marking

·  Tailored encapsulation solutions and magnetic force testing can be provided for specific applications

11. Why choose JinConn Magnets

Dongguan Jinconn New Materials Holdings Co., Ltd specializes in the R&D and manufacturing of high-performance magnetic materials. Guided by the principle “Technology Driven, Quality First,” the company aims to be a global leader in magnetic solutions. Its products are widely used in EVs, smart manufacturing, electronics, and medical devices, earning trust from clients worldwide.

If you have any magnet customization needs, feel free to contact us!
