These industrial grade heat resistance high adhesive force strong performance high torque permanent nickel plating sintered neodymium block magnets are perfect for tasks at home, such as securing cabinet doors, creating tool organisers, or developing custom magnetic storage solutions.

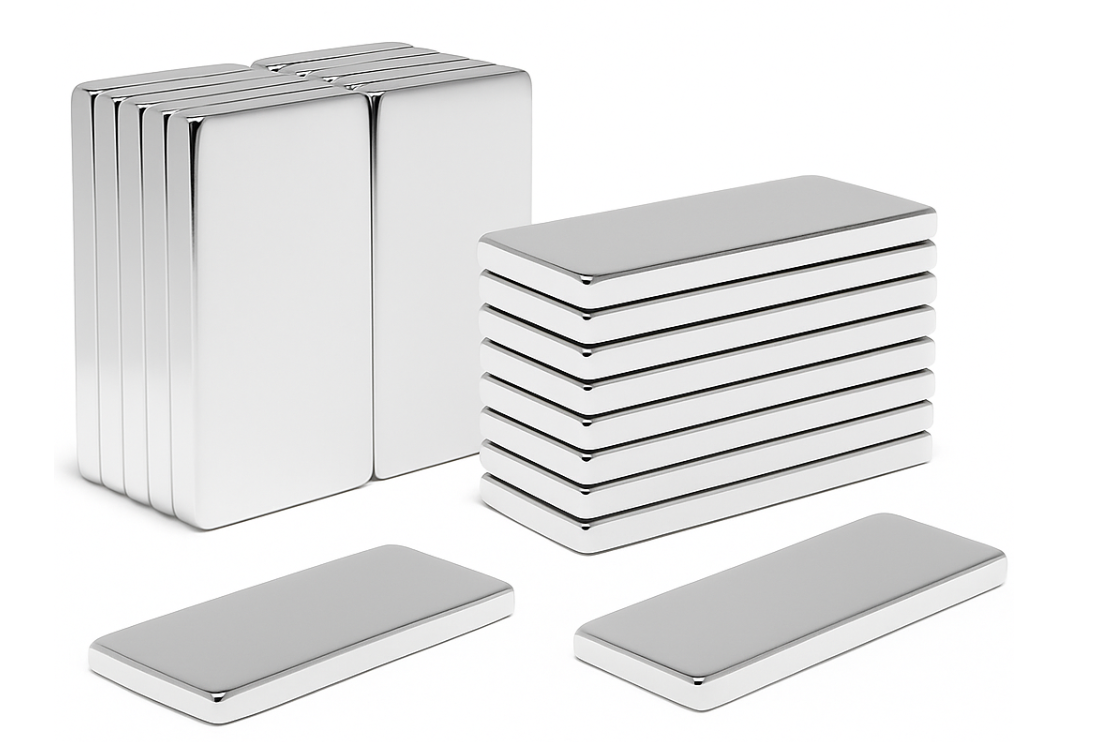

High adhesive force strong performance high torque permanent Nickel-plating sintered neodymium block magnet
2025-7-12
These industrial grade heat resistance high adhesive force strong performance high torque permanent nickel plating sintered neodymium block magnets are perfect for tasks at home, such as securing cabinet doors, creating tool organisers, or developing custom magnetic storage solutions. Their robust magnetic force makes them a mainstay in manufacturing, engineering, and product design, where precision and reliability are paramount. Additionally, these high adhesive force strong performance high torque permanent stable nickel plating sintered neodymium rectangular block magnets for motor are frequently used in scientific research to hold experimental setups securely in place and in construction to assist in positioning heavy materials during fabrication. Used across a diverse range of industries, these magnets are a reliable choice for both everyday and specialised applications.
- Product Name: High adhesive force strong performance high torque permanent nickel plating sintered neodymium block magnets
- Magnet Grade: N52 (Br ≥14.2 kGs, Hcj ≥12 kOe)
- Dimension: L30*10*2mm
- Dimensional Tolerance: +/-0.05
- Operating Temperature: ≤80°C (High-temp versions available)
- Density: ≥7.5 g/cm³
- Surface Magnetic Field: 2,700 Gs
- Magnetic Flux : 2.0 mWb (Fluxmeter-tested)
To enhance these industrial use high adhesive force strong performance high torque electric motor permanent nickel plating sintered neodymium magnets’corrosion resistance, surface quality, and magnetic stability, the following treatments are used:
Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)
Edge Rounding: Reduces magnetic field distortion

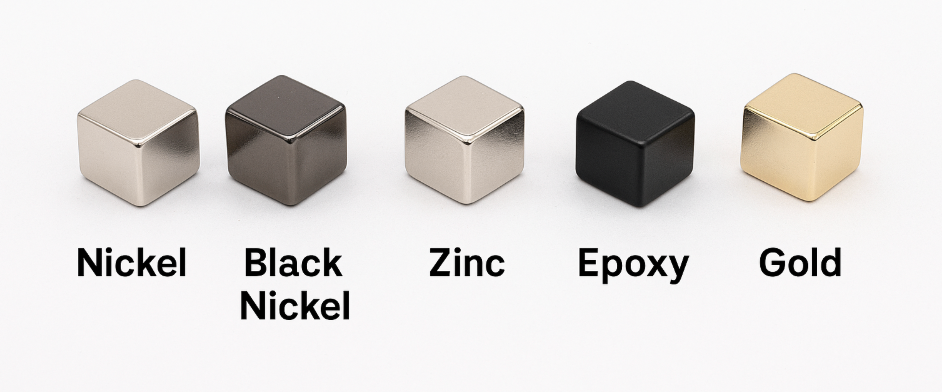

Default Coating: Triple layer Ni-Cu-Ni (customizable)
Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)
Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance
Visual Inspection: Under standardized lighting, trained QC staff check for cracks, chipping, inclusions, pores, or oxidation.
Image Measurement System: High-definition cameras and algorithms conduct non-contact 2D measurements, especially for complex or irregular shapes, ensuring efficiency and objectivity in mass production.
Automated Intelligent Inspection: High-speed cameras with AI algorithms detect and reject defects (e.g., cracks, scratches, discoloration) and dimensional anomalies, improving yield and reducing human error.
Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.
Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing.
6. Packaging & Transportation
Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.
Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.
Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.
Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.
With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.
Handle gently: Avoid impacts/drops (brittle material).
Prevent pinching: Slide magnets apart—do not pry.
Polarity check: Install correctly to avoid malfunctions.
Avoid moisture/acids: Store in dry, mild environments.
Keep away from sensitive devices: Hard drives, IC cards, pacemakers, etc.
Custom magnet size, shape, and coating (layers, thickness, color)
Tailored magnetization direction and field strength
Laser engraving service for logos or serial numbers
Packaging and suction force testing for special applications
Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!
