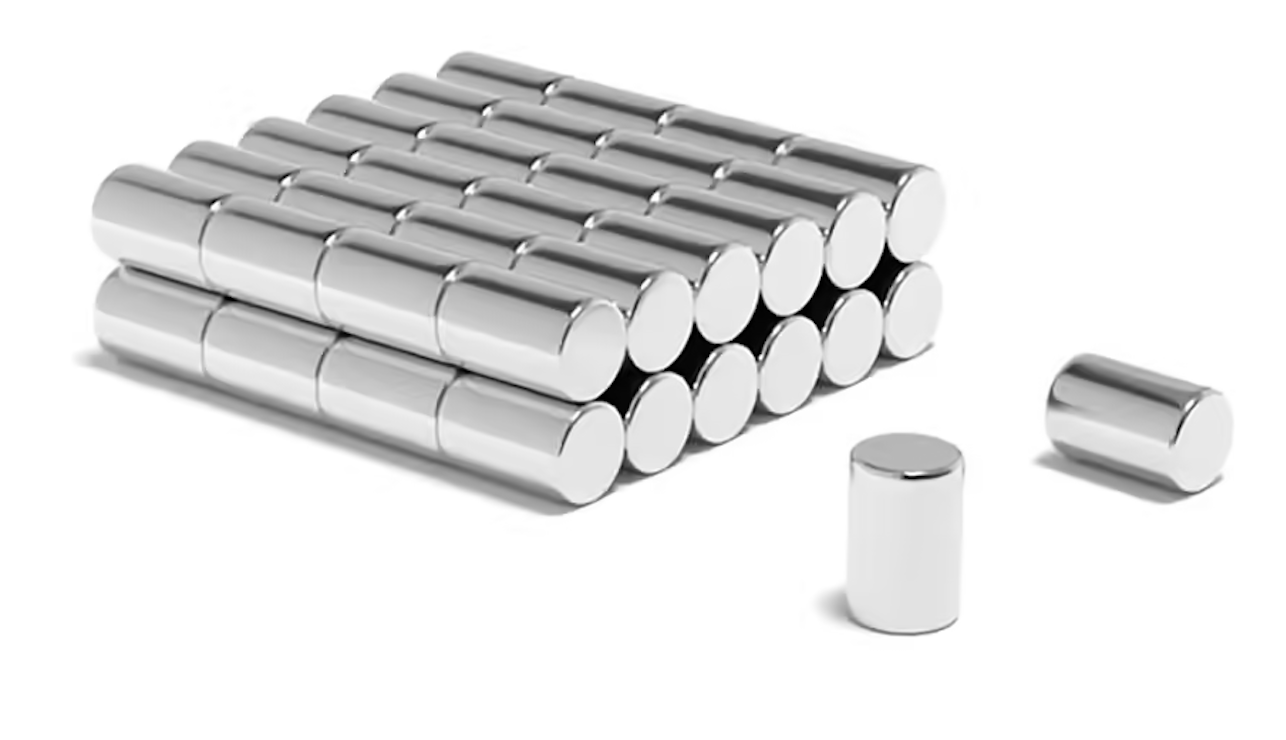

Precision customized premium grade high energy density Neodymium Cylinder Magnet

1. Product Overview & Application Scenarios

Discover the exceptional features of these 7.5mm x 12mm neodymium cylinder magnets, perfect for a broad array of uses. With their powerful magnetic strength, impressive heat resistance of up to 200°C, and superior durability against demagnetisation, these precision customized thermal stability high adhesive force premium grade high energy density Neodymium Cylinder Magnets  are ideal for high-temperature environments like automotive engines, industrial equipment, electronics, and heat-resistant production processes. Elevate your projects with the outstanding efficiency and dependability of top-quality neodymium cylinder magnets.

These precision customized industrial grade premium quality high energy density energy efficient Neodymium Cylinder Magnets can endure intense heat, retaining their magnetic power even at temperatures as high as 200°C. They are also suitable for everyday applications, offering stable performance in various conditions.

2. Technical Specifications

- Product Name:  precision customized premium grade high energy density Neodymium Cylinder Magnet

- Magnet Grade: N42EH (Br ≥12.9 kGs, Hcj ≥30 kOe)

- Dimension: D7.5*12

- Dimensional Tolerance: +/-0.05

- Operating Temperature: ≤200°C (High-temp versions available)

- Density: ≥7.5 g/cm³

- Surface Magnetic Field: 2,900 Gs

- Magnetic Flux : 2.0 mWb  (Fluxmeter-tested)

3. Surface Treatment & Coating Technology

To enhance these precision customized premium grade thermal stability high remanence high energy density  strong magnetic force Neodymium Cylinder Magnets’ corrosion resistance, surface quality, and magnetic stability, the following treatments are used:

Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)

Edge Rounding: Reduces magnetic field distortion

Default Coating: Triple layer Ni-Cu-Ni (customizable)

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)

Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance

4. Reliability Testing

Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.

Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing.

Damp Heat Test: Evaluates resistance to high humidity and corrosion

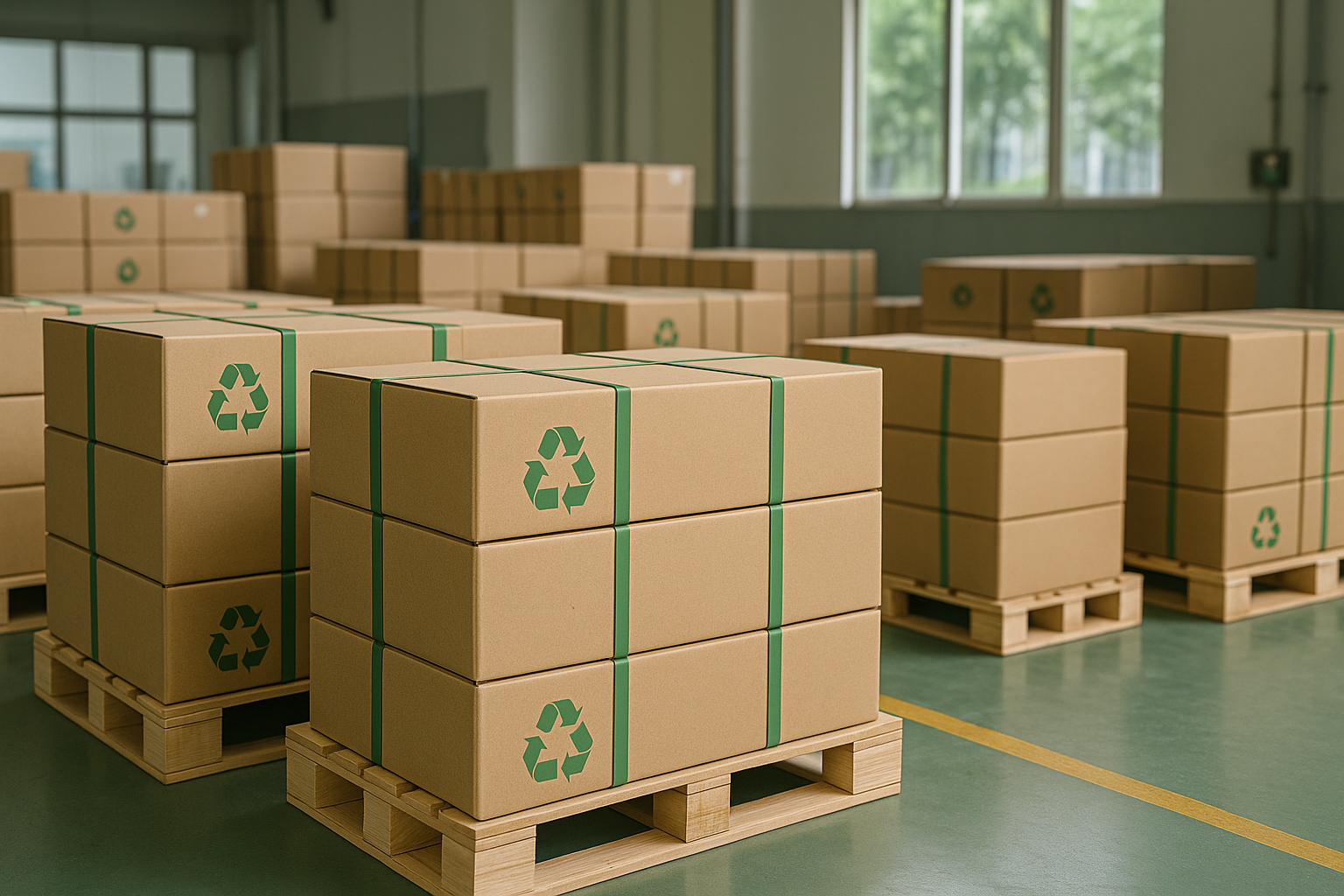

5. Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

6. Why Choose us ？

Dongguan Jinconn New Material Holdings  Co., Ltd. is a publicly listed enterprise offering integrated R&D, manufacturing, and sales of rare earth magnets. Based in Xiaohe Industrial Zone, Daojiao Town, Dongguan, we serve clients across China and globally.

⭐20+ years of magnet manufacturing expertise

⭐Strict quality control & customization capability

⭐Multilingual technical support with global delivery

⭐RoHS and REACH compliant

Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!

7.  Usage Precautions？

⚠ Safety & Handling Guidelines

Handle with care: Neodymium magnets are brittle and can chip or crack if dropped or impacted.

Avoid injury: Always slide magnets apart—do not force or pry them to separate.

Check polarity before use: Incorrect installation may cause malfunction or damage to equipment.

Store properly: Keep in a dry, neutral environment; avoid contact with moisture, acids, or corrosive substances.

Keep away from sensitive electronics: Do not place near hard drives, magnetic cards, pacemakers, or similar devices.

8. Customization & Services

Customizable magnet dimensions, geometry, and surface coatings (including layer count, thickness, and color)

Precision magnetization orientation and adjustable magnetic field intensity

Optional laser marking for logos, part numbers, or traceability codes

Specialized packaging and pull-force testing tailored to your application needs

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

·  Precision Magnetics, Tailored for Performance.

If you have any magnet-related needs, we offer free customized magnet services. Please feel free to contact us at any time.
