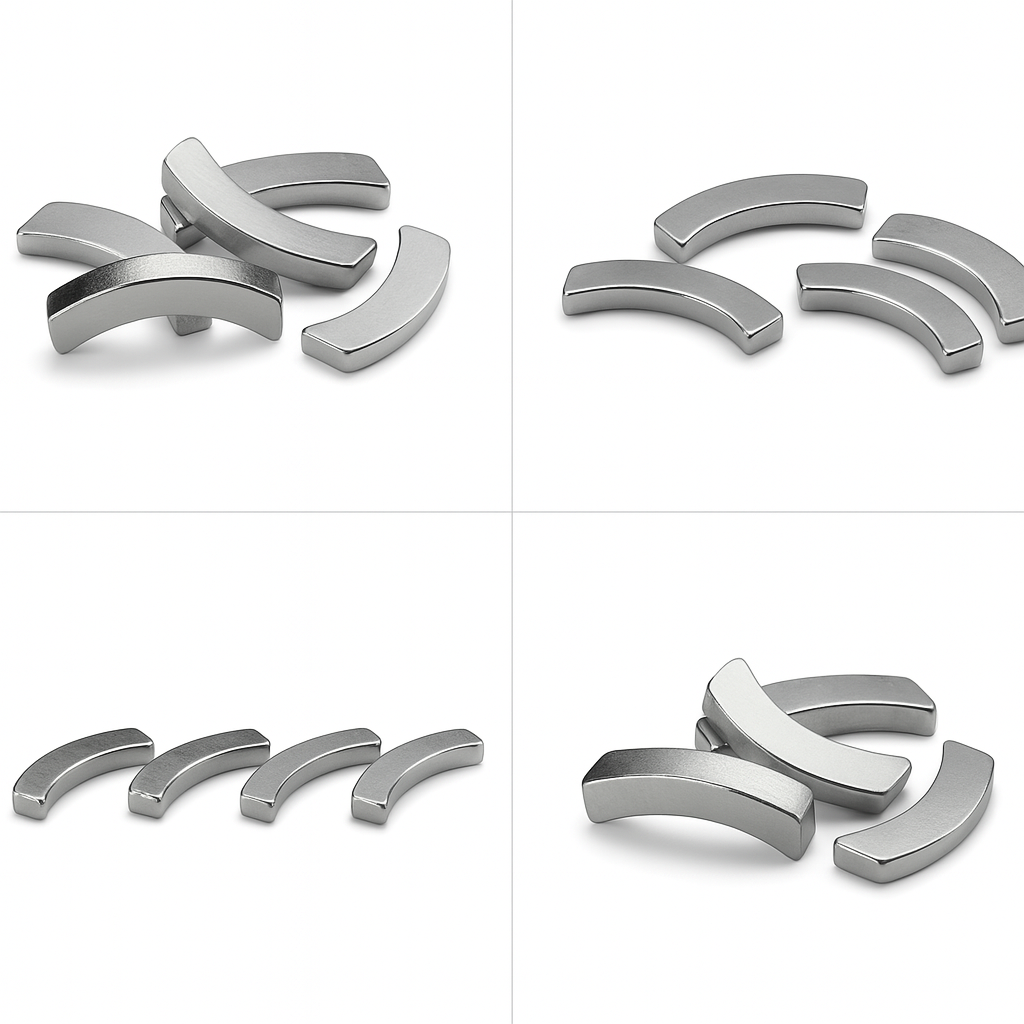

customized industrial grade heat Resistant high energy density stable strong Curved arc segment Rare Earth Magnet

1. Product Overview & Application Scenarios

This customized industrial grade high adhesive force heat Resistant high energy density stable strong Curved arc segment Rare Earth Magnet is manufactured using advanced sintering technology, delivering exceptional magnetic energy product and outstanding coercivity. It maintains strong and stable magnetic force even in harsh operating conditions. With a high-temperature resistance of up to 200°C, it is widely used in premium electric motors, automotive drive systems, wind power generators, and industrial automation applications. The surface is treated with anti-corrosion coating to ensure long service life and reliability in various environments. Precisely machined arc design enables flexible assembly and enhances overall system efficiency. Featuring superior magnetic strength, durability, and customizable options, this customized industrial grade high torque heat Resistant high energy density fast response stable strong Curved arc segment Rare Earth Magnet is the ideal choice for high-end equipment manufacturing and demanding engineering applications.

Application Scenarios

Home & Creative Applications

Magnetic Locks & Furniture Hardware

Ideal for wardrobe doors, drawers, and cabinet closures, providing a silent, wear-free magnetic sealing solution.
Sleek in appearance, suitable for both surface-mounted and embedded installation.

Storage & Display Solutions

Perfect for magnetic tool racks, knife holders, and display stands on metal surfaces, offering strong attraction without damaging items.
Also serves as the embedded magnetic source in magnetic hooks or decorative accessories.

Electronics & Communication

Smart Devices & Modular Attachments

Applied in tablet covers, charging modules, and wireless accessories for magnetic structural connection.
Common in consumer electronics for detachable components and magnetic connectors.

 Audio Equipment

Utilized in the magnetic circuits of microphones, earphones, and speakers to ensure consistent and stable audio magnetic performance.

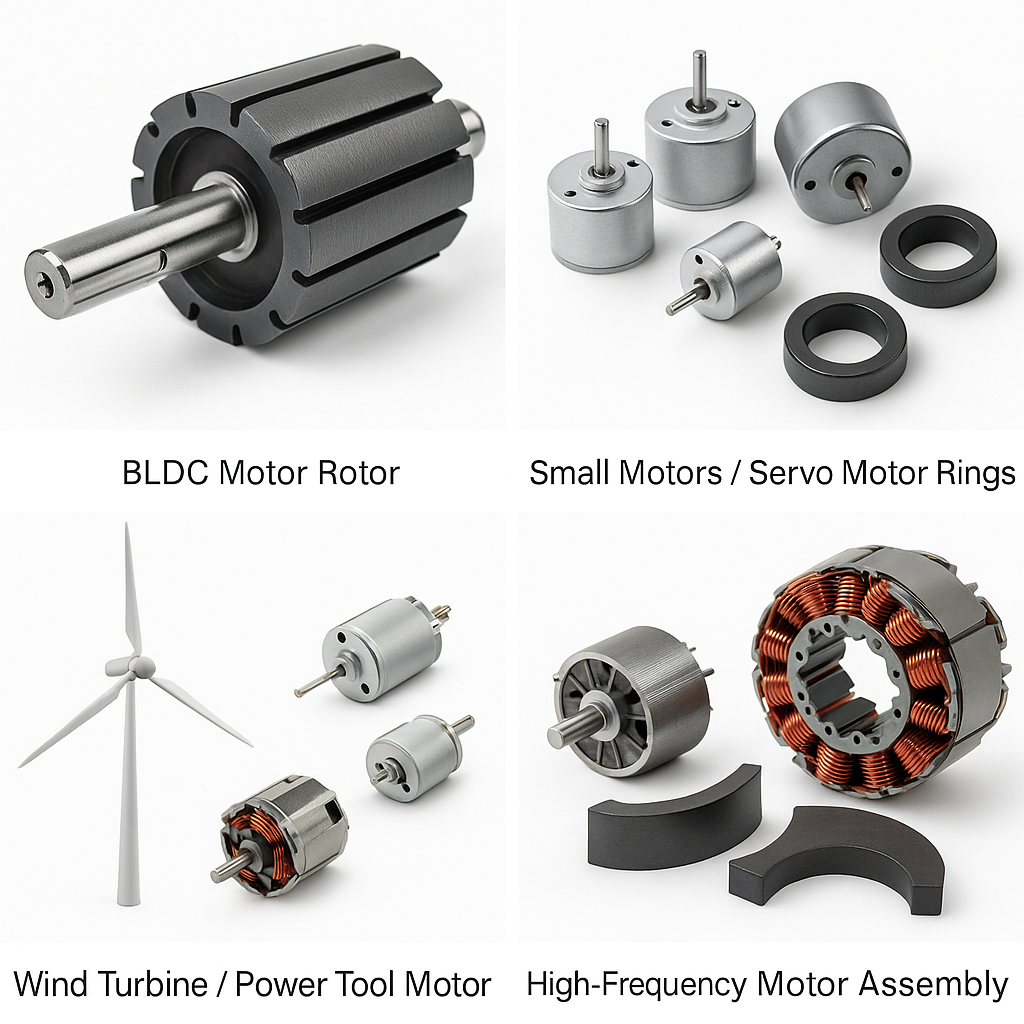

Motors & Generators

Used as rotor/stator magnets in permanent magnet motors, ideal for brushless DC motors, wind turbines, and high-speed spindles.
The arc-shaped design ensures a tight fit within the motor’s inner diameter, improving magnetic flux density and energy efficiency.

2. Technical Specifications

- Product Name: customized industrial grade heat Resistant high energy density stable strong Curved arc segment Rare Earth Magnet

- Magnet Grade: N52 (Br ≥14.2 kGs, Hcj ≥12 kOe)

- Dimension: L8x4x3mm

- Dimensional Tolerance: +/-0.05

- Operating Temperature: ≤80°C (High-temp versions available)

- Density: ≥7.5 g/cm³

- Surface Magnetic Field: 3,500 Gs

- Magnetic Flux : 2.0 mWb  (Fluxmeter-tested)

3. Surface Treatment & Coating Technology

To enhance this customized industrial grade premium quality high magnetic force heat Resistant high energy density stable strong Curved arc segment Rare Earth Magnet’s corrosion resistance, surface quality, and magnetic stability, the following treatments are used:

Edge Reinforcement: Laser cladding with nickel-based alloy at magnet seams (prevents electrochemical corrosion)

Edge Rounding: Reduces magnetic field distortion

Default Coating: Triple layer Ni-Cu-Ni (customizable)

Standard Thickness: Ni (3μm) + Cu (5μm) + Ni (4μm)

Optional Coatings: Gold or silver plating for better conductivity and corrosion resistance

4 . Reliability Testing

Impact & Vibration Test: Simulates shipping and usage conditions to ensure operational stability.

Constant Temperature & Humidity Test: Performed under 85°C and 85% RH for 96–500 hours. Performance and appearance are compared before and after testing.

Damp Heat Test: Evaluates resistance to high humidity and corrosion

5. Packaging & Transportation

Defect Elimination: 100% inspection using calipers, projectors, visual checks, and automated systems to reject cracked, chipped, oxidized, or coated-defective magnets.

Uniform Magnetization & Structured Arrangement: Magnets are uniformly magnetized and arranged for optimal packaging based on customer requirements to ensure performance and facilitate automated assembly.

Vacuum Sealed Packaging: Multi-layer vacuum sealing with moisture barriers, desiccants or nitrogen, prevents corrosion and magnetic interference during storage and shipping.

Customized Outer Packaging: Shock-proof, moisture-resistant, and anti-magnetic leakage packaging (e.g., multilayer cartons, plastic boxes, metal shielding) ensures compliance with international logistics standards. Each box includes a product list, labels, and tracking codes.

6. Why Choose us ？

Dongguan Jinconn New Material Holdings  Co., Ltd. is a publicly listed enterprise offering integrated R&D, manufacturing, and sales of rare earth magnets. Based in Xiaohe Industrial Zone, Daojiao Town, Dongguan, we serve clients across China and globally.

⭐20+ years of magnet manufacturing expertise

⭐Strict quality control & customization capability

⭐Multilingual technical support with global delivery

⭐RoHS and REACH compliant

Please contact us for free samples, magnet customization solutions, and MSDSRoHS, ISO 9001, QC080000, IATF 16949, ISO 14001, ISO 27001 or other relevant certificates!

7.  Usage Precautions？

⚠ Safety & Handling Guidelines

Handle with care: Neodymium magnets are brittle and can chip or crack if dropped or impacted.

Avoid injury: Always slide magnets apart—do not force or pry them to separate.

Check polarity before use: Incorrect installation may cause malfunction or damage to equipment.

Store properly: Keep in a dry, neutral environment; avoid contact with moisture, acids, or corrosive substances.

Keep away from sensitive electronics: Do not place near hard drives, magnetic cards, pacemakers, or similar devices.

8. Customization & Services

Customizable magnet dimensions, geometry, and surface coatings (including layer count, thickness, and color)

Precision magnetization orientation and adjustable magnetic field intensity

Optional laser marking for logos, part numbers, or traceability codes

Specialized packaging and pull-force testing tailored to your application needs

With deep expertise in magnetic materials, we deliver solutions for industries like EVs, smart manufacturing, and electronics. Our strong technical capabilities and product consistency have earned the trust of customers worldwide.

·  Precision Magnetics, Tailored for Performance.

If you have any magnet-related needs, we offer free customized magnet services. Please feel free to contact us at any time.
