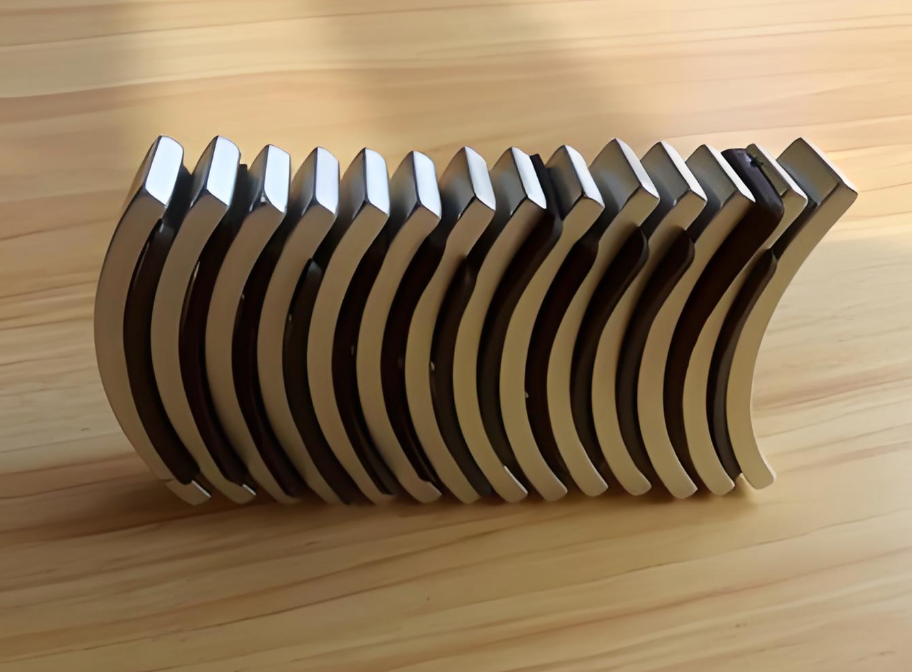

High-Performance Tile-Shaped NdFeB Magnet

1. Product Description

This product is a high-performance special-shaped NdFeB magnet with grade N48SH, featuring extremely high magnetic strength, excellent demagnetization resistance, and precise dimensional accuracy. Product precision can be customized according to customer requirements. Its sophisticated special-shaped design meets high-performance magnetic requirements in compact spaces, making it widely applicable in various high-end motors.

The magnet is manufactured using advanced wire cutting, arc surface grinding, and end face grinding processes, ensuring neat edges and uniform dimensions. Its surface treatment consists of multi-layer metal coating (Ni+Cu+Ni) or optional Zn coating, effectively preventing oxidation, corrosion and other environmental impacts, thereby extending the product's service life.

2. Technical Parameters

Product Name:  High-Performance Tile-Shaped NdFeB Magnet
Material Grade:  N48SH (Remanence Br ≥ 14.2 kGs, Intrinsic Coercivity Hcj ≥ 20 kOe)
Dimensions:  R16R14.156.15.51.5mm (custom sizes available)
Dimensional Tolerance:  Length ±0.05mm, Width ±0.05mm, Thickness ±0.05mm
Operating Temperature:  ≤150℃ (high-temperature versions customizable)
Density:  ≥7.5 g/cm³
Surface Magnetic Field:  2800±200 Gauss (measured with Japan TM-801 Gauss meter)
Magnetic Flux Value:  2.1 mWb (measured with flux meter)

3. Manufacturing Process

This product is manufactured through the following key processes:

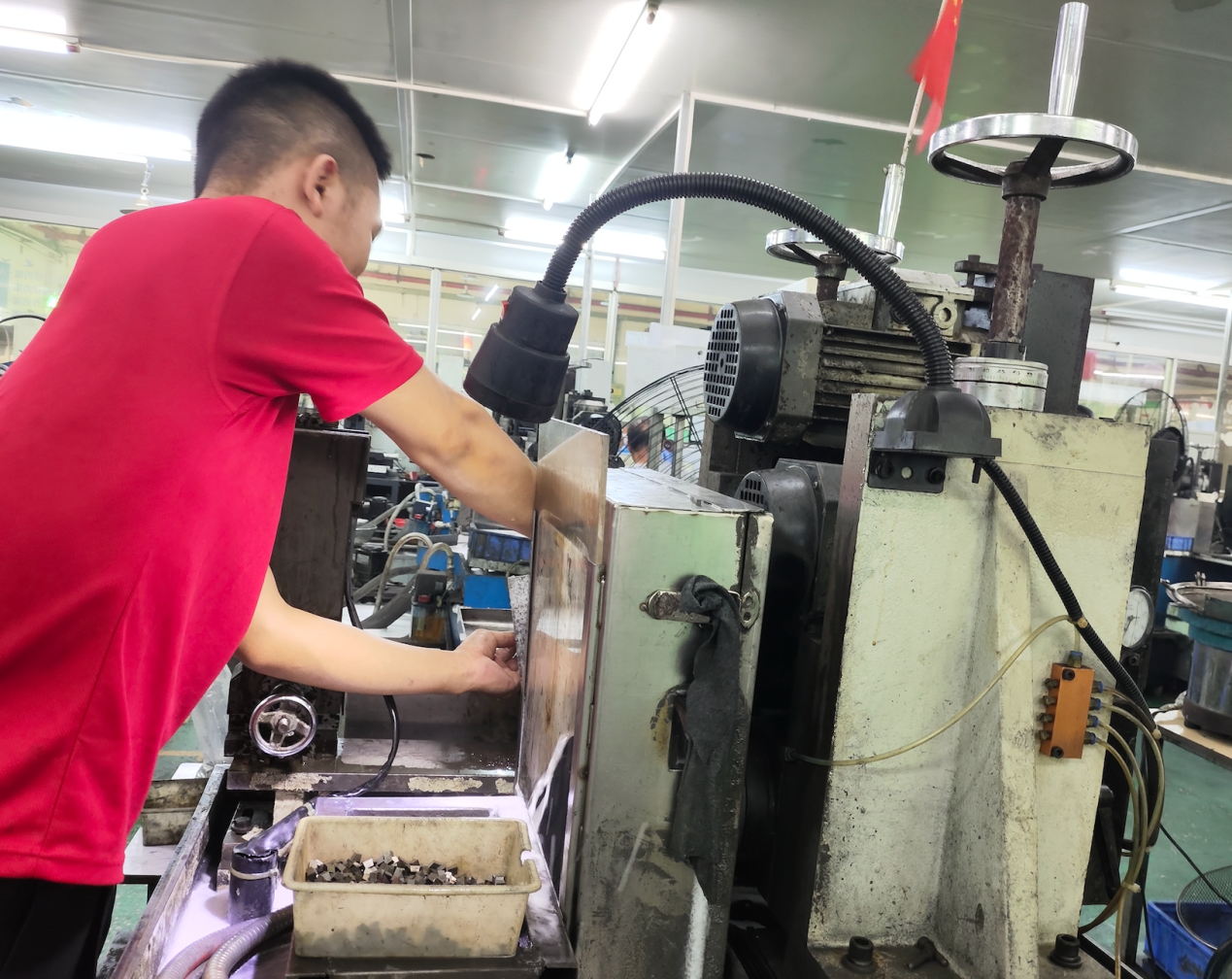

Wire Cutting: Molybdenum wire cutting of arc profile (accuracy ±0.03mm)

Arc Surface Grinding: Special arc grinding machine for finishing inner/outer diameters (roundness ≤0.05mm)

End Face Grinding: Double-face grinding to ensure thickness and parallelism (tolerance ±0.02mm)

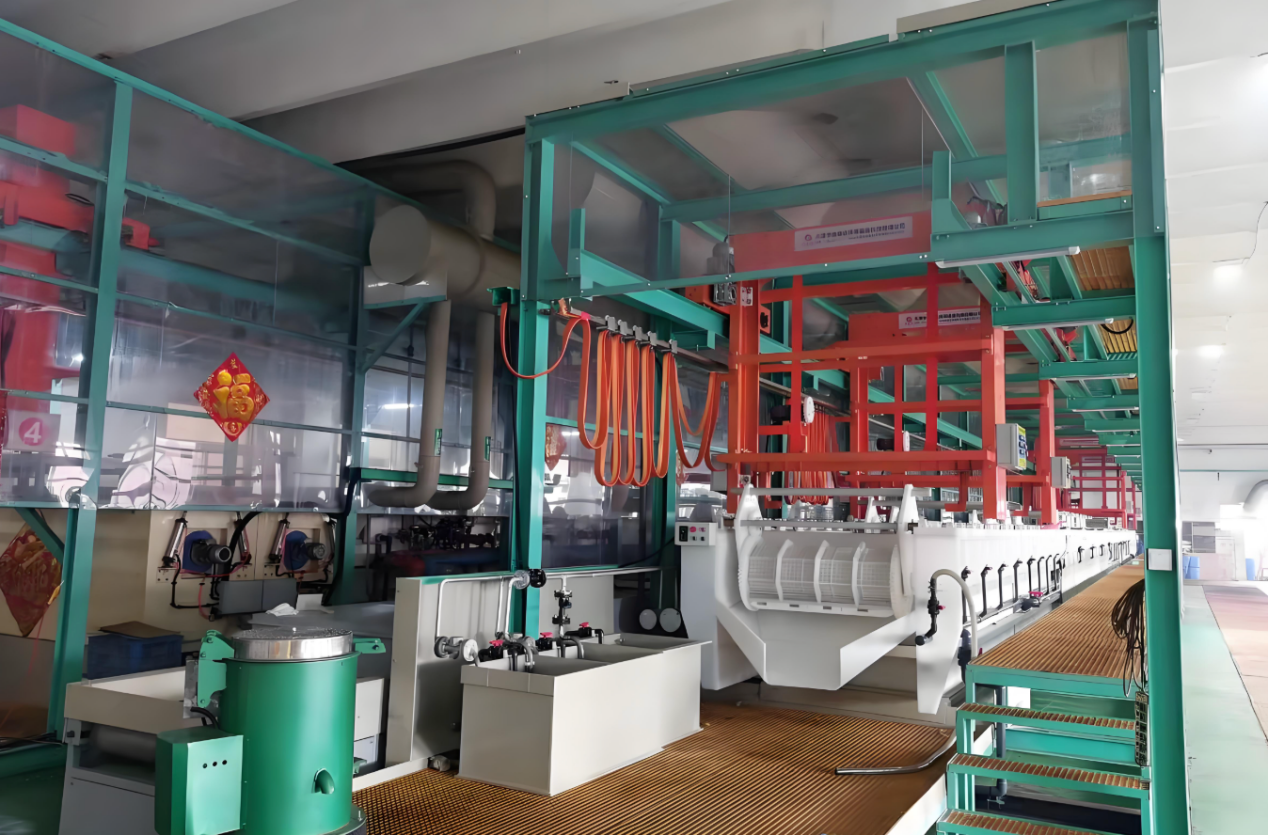

4. Surface Treatment and Coating Technology

To improve the magnet's corrosion resistance and appearance quality, the following surface treatment solutions are adopted:

Default Coating: Three-layer nickel-copper-nickel (Ni-Cu-Ni), customizable according to customer requirements

Coating Thickness Standard: Ni (3μm) + Cu (5μm) + Ni (4μm), customizable according to customer needs

Optional Coating: Single-layer zinc (Zn 5μm) for cost-sensitive projects

Coating Characteristics:

Salt spray corrosion resistance, improved oxidation resistance

Increased surface hardness to prevent scratches

Improved appearance glossiness, suitable for exposed components

5. Appearance and Dimensional Inspection Standards

To ensure consistent and reliable product quality, all products undergo the following inspection processes:

» Manual dimensional inspection with micrometers/calipers

» Visual inspection (light source illumination 800-1200 lumens, standard inspection distance 20-750px)

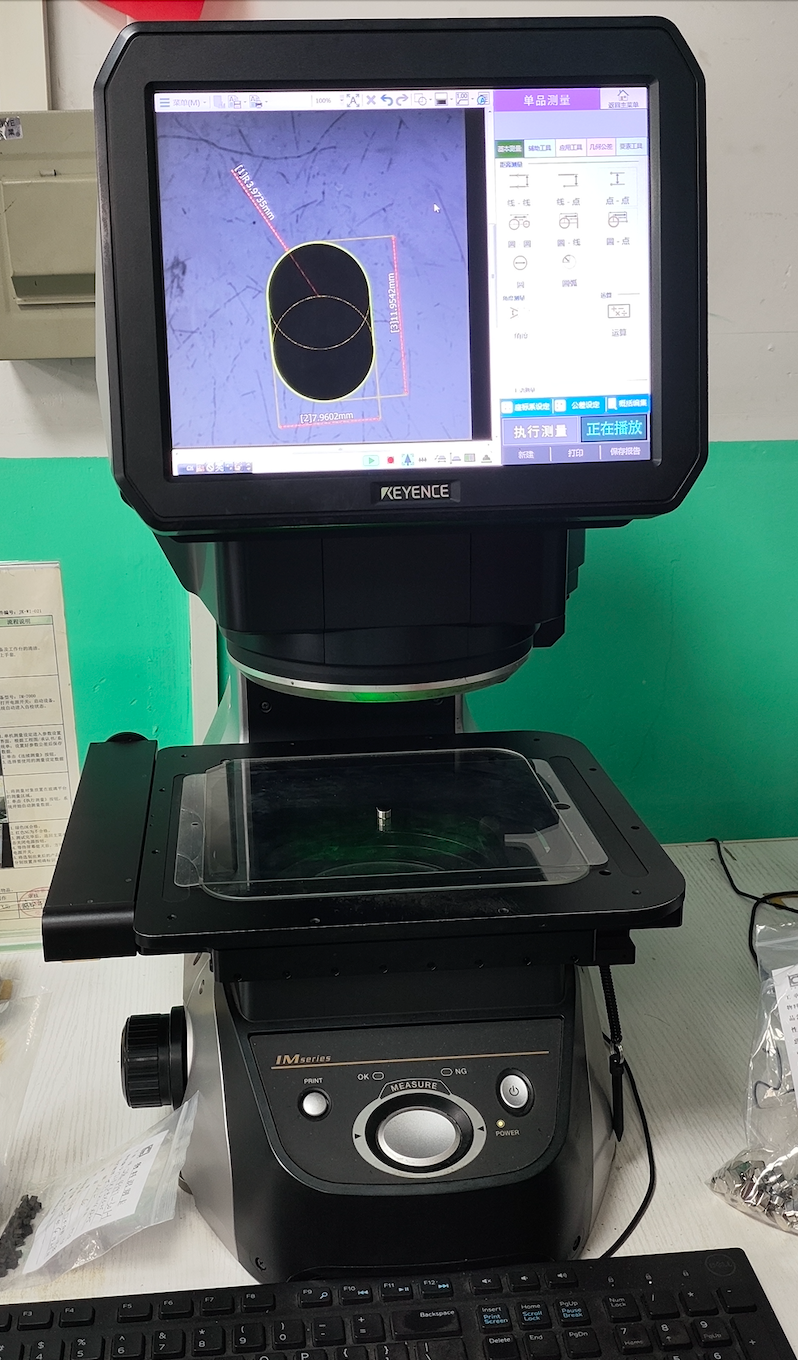

» 2D image measuring instrument inspection (for special-shaped and non-standard structures)

» CCD intelligent sorting machine for automatic sorting and full inspection of product appearance and dimensions

» Magnetic flux testing (to ensure batch consistency of magnetic performance)

6. Reliability Testing

6.1 Neutral Salt Spray Test (NSS):

Temperature: 35±2°C

Salt spray deposition rate: 1-2ml/2000px²·h

pH value: 6.5-7.2

Test duration: 24h/48h/72h/96h, can be set according to application scenarios/customer requirements/project requirements

6.2 Temperature Demagnetization Test:

Place in constant temperature oven (80°C) for 2 hours, test duration can be adjusted according to customer requirements

Demagnetization rate ≤10% is qualified

Simulates temperature stability in practical applications

6.3 Drop Test Note:

This product is not suitable for "tool magnet" drop tests, as NdFeB is a brittle material and strong impacts may cause edge chipping/breakage

7. Packaging Process and Instructions

We implement professional packaging methods according to magnetic product transportation requirements:

» Remove defective products in appearance and dimensions

» Uniformly magnetize qualified products and arrange them neatly

» Customized box quantities/labels according to customer requirements

» Each box uses vacuum packaging with anti-magnetic separator plates and shock-absorbing pads

» Small boxes are packed into master cartons with moisture-proof, shock-proof and anti-magnetic interference protection

Packaging methods can be customized.

8. Application Fields

This product is widely used in:

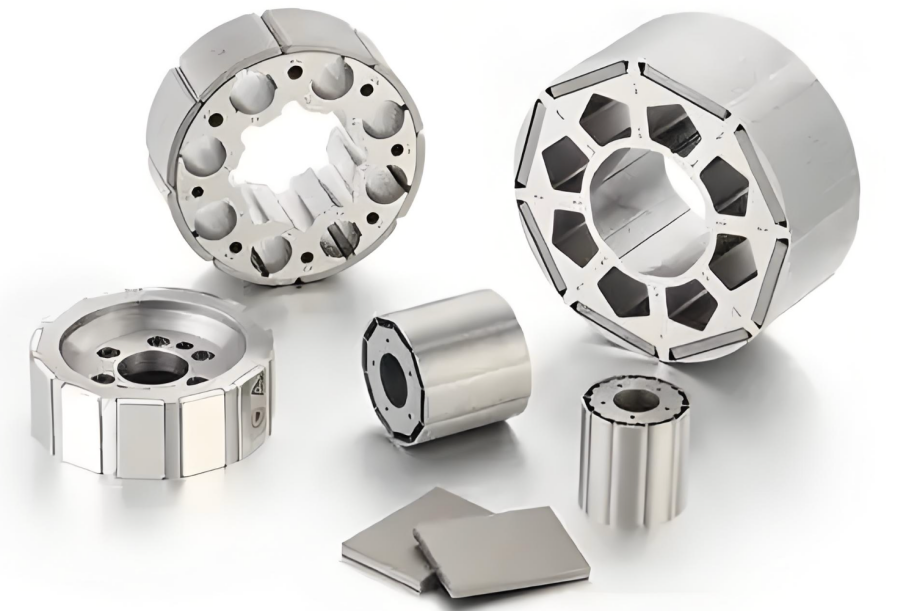

Motors: Electric vehicle drive motors, servo motor rotors.

Acoustics: Speaker magnetic circuits (e.g. subwoofers).

Energy: Wind turbine generator segment magnets.

9. Usage Precautions

Handle with care: NdFeB is a brittle material - avoid impacts, collisions or drops

Avoid pinching: The magnetic force is extremely strong - always slide to separate rather than pulling apart

Polarity identification: Install correctly according to N-pole marking to avoid equipment malfunction

Moisture and corrosion prevention: Store away from high temperature, high humidity, strong acid/alkali environments

Keep away from sensitive devices: Keep strong magnets away from hard disks, IC cards, pacemakers, etc.

10. Customization and Services

We support various customization services:

» Size, shape, coating (layers, thickness, color) customization

» Polarity direction and magnetic strength customization

» Laser LOGO or serial number marking

» Special application packaging solutions and pull force testing support

For samples, technical parameter tables, MSDS, RoHS, ISO9001, QC08000, IATF16949, ISO14001, ISO27001 certificates and other documents, please contact our sales engineers.
